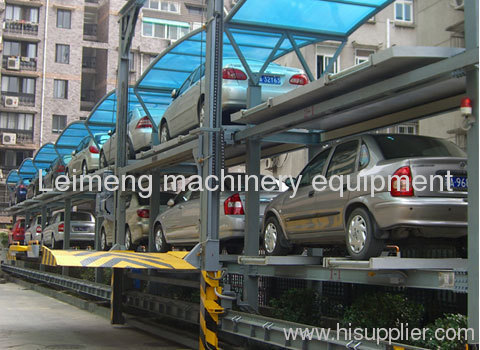

Leimeng single group aisle parking equipment LM-PXD1105074 manufacturer from China zhejiang leimeng machinery equipment co., ltd

Product Detail

Model No.: LM-PXD1105074

Production Capacity: 1200sets per month

Delivery Date: 40-60 days

Means of Transport: Ocean

Packing: bare packing with steel str...

1.Rapid parking.
2.Security guarantee.
3.Felxible layout.
4.Less land occupation.
5.Environmental and superior quality.
6.Can be used widely

Operation principle (PXD type)

1.A full-automatic parking system.

2.Use the aisle stacking machinery or bridge crane to move the car horizontal and vertical to the post.

3.The store & retrieve equipment shall complete the parking action.

1.Specification	LM-PXDD
2.Access & exit garage method	Forward to access & forward to exit
3.Acceptable car-size	D type, LWH 5000mmm1850mm1550mm Rated load 2000Kg
4.Power capacity	50KVA
5.Operation method	Man-machine interface, touch screen, intelligent card
6.Control method	PLC computer and Frequency conversion variable pressure control
7.Single store & retrieve speed	Single max store(retrieve)time:100s(per car) Single min store(retrieve)time:60s(per car) Single beverage store(retrieve)time:80s(per car)
8.Lift method	Chain
9.Noise	<60dB(national standard 70dB)
10.External frame structure	Steel structure
11.Sliding method	Friction directly take style
